2024 KLX300R

Kawasaki 2024 KLX300R for Sale at Bowen Hills Kawasaki in Bowen Hills, QLD | Specifications and Review Information

GET OUT AND PLAY

The KLX300R is the ultimate high-performance trail bike for off-road thrills, bridging the world between a weekend play bike and a full race bike. As the leader of the KLX lineup, the KLX300R combines the best of both engine and chassis performance to create the ultimate lightweight, fun off-road machine.

FEATURING:

292 cc LIQUID-COOLED, FUEL-INJECTED, FOUR-STROKE DOHC SINGLE
LIGHTWIEGHT PERIMETER FRAME
TRAIL-TUNED LONG-TRAVEL SUSPENSION

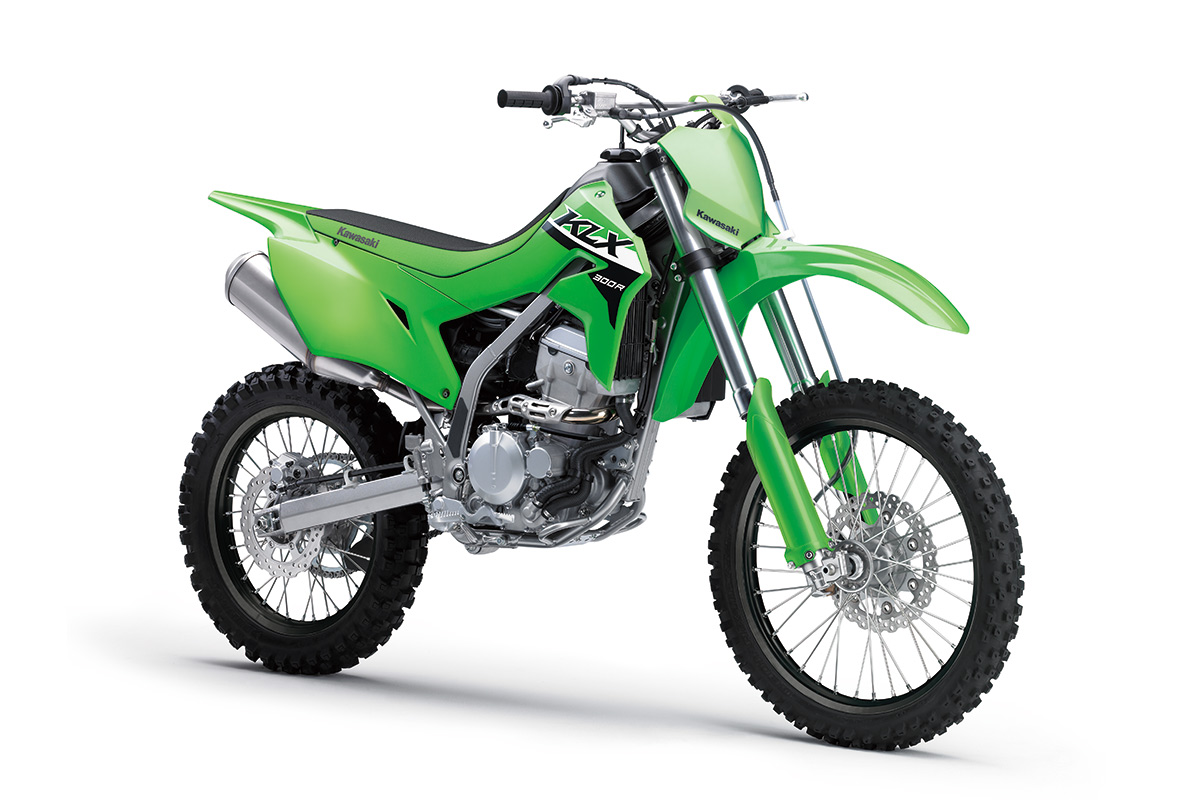

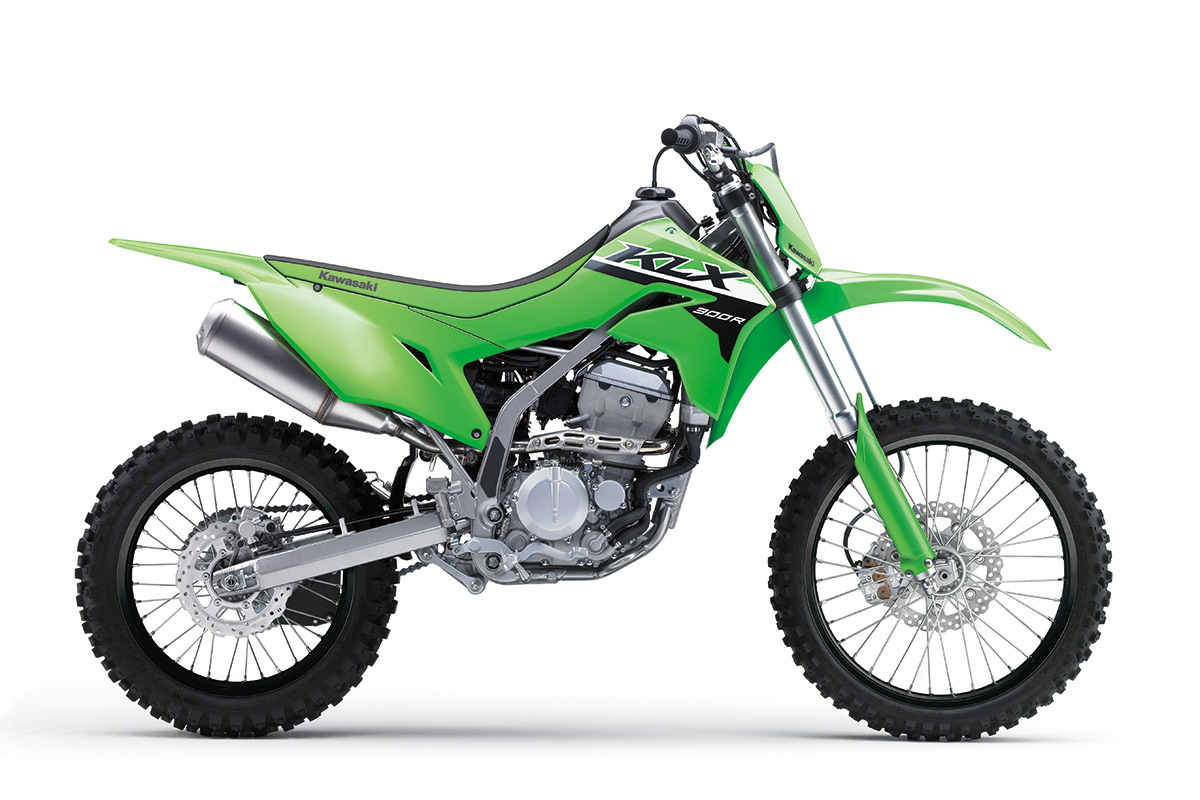

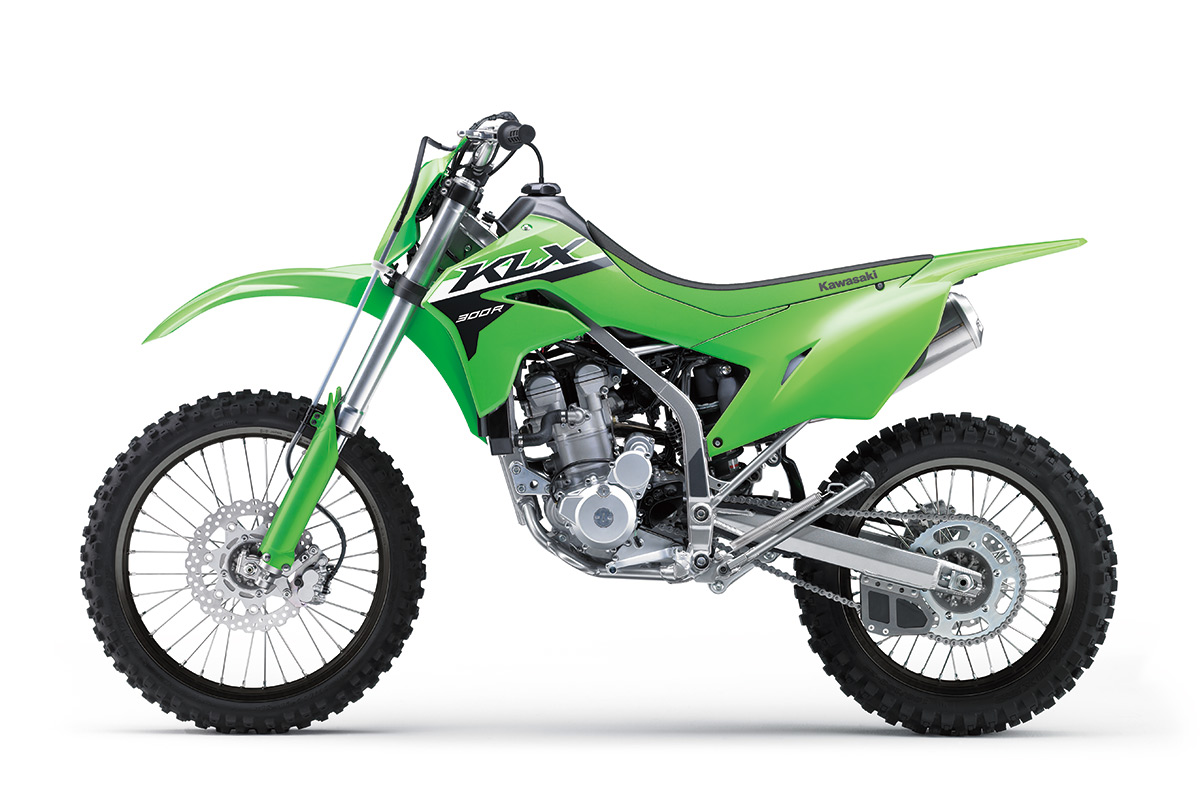

Kawasaki KLX300R Lime Green

Lime Green

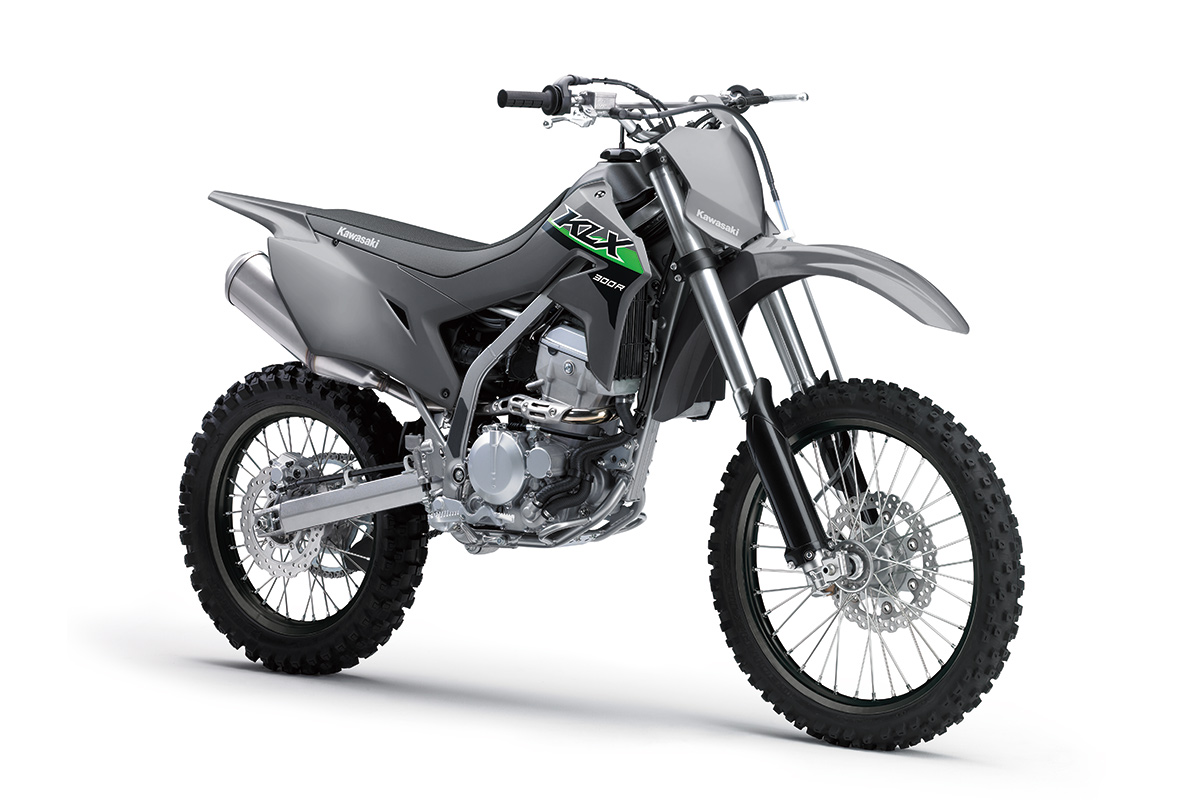

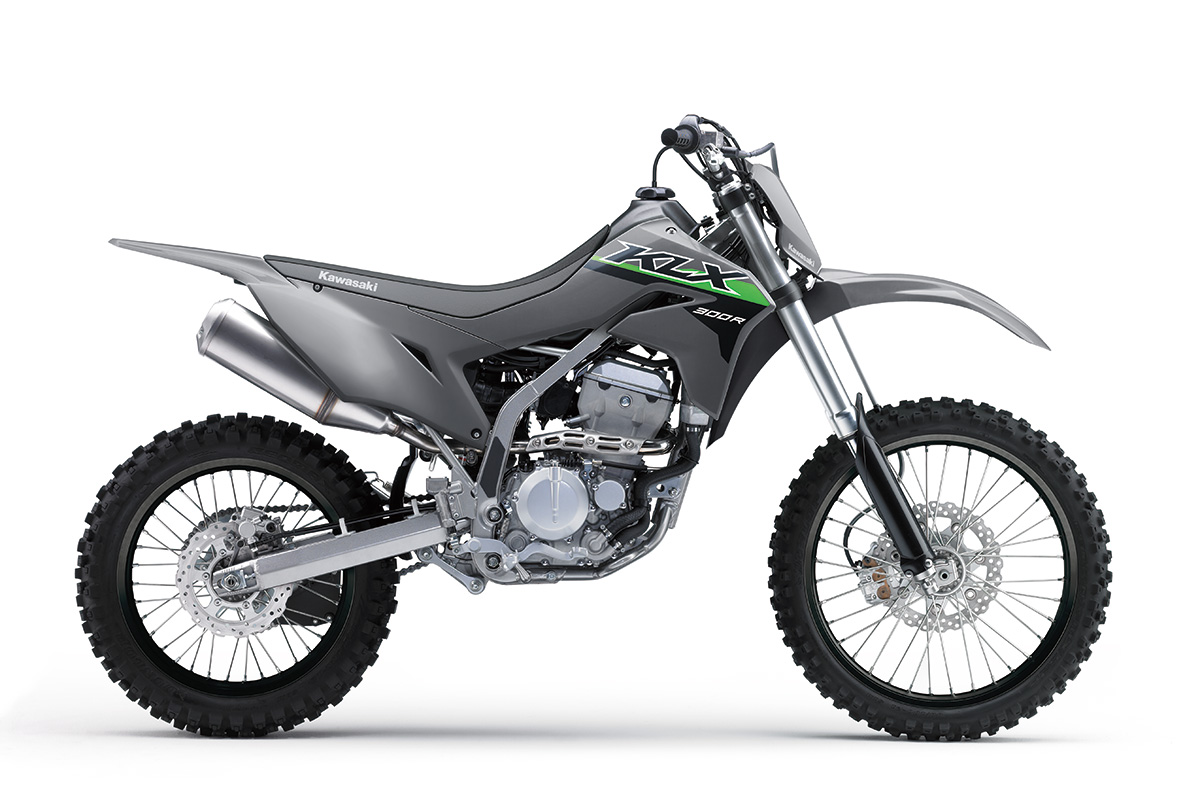

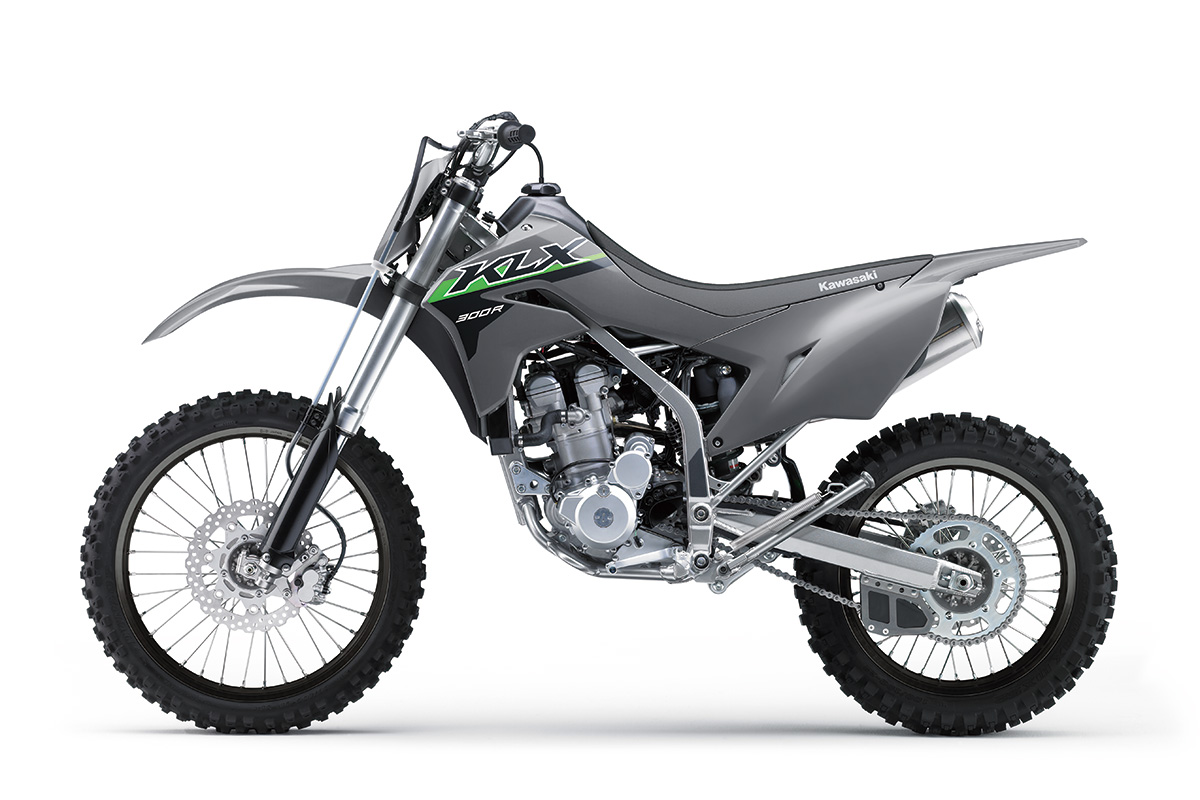

Kawasaki KLX300R Battle Gray

Battle Gray

POWERFUL ENGINE

Serious off-road fun starts with the fuel-injected 292 cc liquid-cooled four-stroke Single, delivering crisp response, quick-revving power and strong low-end torque. The KLX300R is built tough with an engine designed to withstand the rigours of hard trail riding.

NIMBLE CHASSIS

A lightweight perimeter frame offers optimised rigidity for stability at speed while the short wheelbase facilitates agile handling. High ground clearance allows riders to more easily clear technical terrain features, resulting in confident trail riding.

TRAIL-TUNED SUSPENSION

The KLX300R is built for serious play and is equipped with long-travel suspension to confidently handle the rigors of aggressive off-road riding.

WHEELS & BRAKES

Full-size wheels and powerful disc brakes make the KLX300R ready for tough off-road terrain.

Maximum Power	21.4 kW {29 PS} / 8,000 rpm
Maximum Torque	26.3 Nm {2.7 kgfm} / 7,000 rpm
Engine	4-stroke Single
Displacement	292 cc
Bore x Stroke	78.0 x 61.2 mm
Compression Ratio	11.1:1
Valve System	DOHC, 4 valves
Fuel System	Fuel injection: ø34 mm x 1
Ignition	Digital
Starting	Electric
Cooling	Liquid-cooled
Lubrication	Forced lubrication, wet sump
Transmission	6-speed, return
Primary Reduction Ratio	2.800 (84/30)
Gear Ratio: 1st	3.000 (30/10)
Gear Ratio: 2nd	2.000 (30/15)
Gear Ratio: 3rd	1.500 (27/18)
Gear Ratio: 4th	1.250 (25/20)
Gear Ratio: 5th	1.050 (21/20)
Gear Ratio: 6th	0.952 (20/21)
Final Reduction Ratio	3.571 (50/14)
Clutch	Wet multi-disc, manual
Final Drive	Chain
Frame	Perimeter, high tensile steel
Front Suspension	ø43 mm inverted fork with adjustable compression damping
Rear Suspension	Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload
Front Wheel Travel	285 mm
Rear Wheel Travel	285 mm
Rake	26.9°
Trail	109 mm
Steering Angle (L/R)	45° / 45°
Front Tyre	80/100-21 51M
Rear Tyre	100/100-18 59M
Front Brake/s	Semi-floating ø270 mm petal disc
Front Caliper/s	Dual-piston
Rear Brake	ø240 mm petal disc
Rear Caliper	Single-piston
Dimensions (LxWxH)	2,120 x 825 x1,245 mm
Wheelbase	1,435 mm
Road Clearance	300 mm
Seat Height	900 mm
Curb Weight*	128 kg
Fuel Capacity	7.9 litres
Model Code	KLX300CRFNN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
